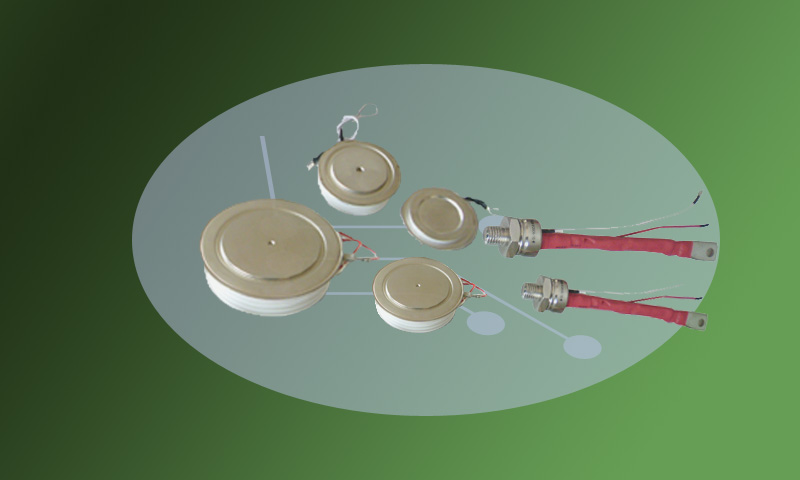

General Thyristor Flat Type is the derivative of the thyristor module also known as the SCR rectifier. The thyristor is structurally a PNPN four-layer semiconductor,with three poles: Anode, Cathode and Gate. Thyristor shall work when positive voltage is exerted and gate pole has a trigger current. Its derivative devices are fast thyristor, two-way thyristor, reverse thyristor and light control thyristor etc, and marked in the circuit with the text symbol "V" or "VT" (or "SCR" in old standard).

General Thyristor Flat Type is composed of several rectifiers, thus having the characteristics of silicon rectifier device, able to work in high voltage, high current conditions, and its work process can be controlled, which is widely used in controllable rectifier, AC voltage regulator, contactless electronic switches and inverters.

Features

Our General Thyristors possess the following features:

Diffusion technology.
Flat type metal-ceramic packages with pressure contacts.
Double-side cooling.
Amplifying gates in center.
Great current and high voltage.

Application & Specification

Application

General Thyristors are widely used in the following fields:

High power convertor.
Phase Control Rectifier.
AC/DC motor control.
AC/DC switch power source.
Active and passive inverter.

Specification

Type	I_T（AV） @T_C		V_DRM V_RRM	I_DRM I_RRM	V_TM @I_TM		I_GT	V_GT	d_v/d_t	d_i/d_t	I_TSM	I²t	V_TO	r_T	R_thjc	R_thch	T_JM	Fig.
	I_T（AV） @T_C			125℃	25℃				125℃		10ms		125℃
	A	℃	V	mA	V	A	mA	V	V/μS	A/μS	KA	KA2S	V	mΩ	℃/W	℃/W	℃
T223-160	160	85	2800-3800	40	2.3	600	250	3	1000	200	3	45	1.2	1.3	0.095	0.02	125	T07C
T223-200	200	85	2000-2600	30	2.3	600	250	3	1000	200	3	45	1.2	1.3	0.095	0.02	125	T07C
T123-200	200	85	1200-1800	20	1.8	600	200	2.5	1000	200	4.5	100	0.92	1.2	0.09	0.02	125	T07
T123-300	300	85	400-1000	20	1.45	600	200	2.5	1000	200	5.4	145	0.78	0.8	0.09	0.02	125	T07
T423-200	200	85	2000-2600	30	2.1	600	250	3	1000	200	4	80	1.15	1.1	0.08	0.02	125	T08C
T423-250	250	85	1200-1800	20	1.7	600	200	2.5	1000	200	5.5	150	0.92	0.95	0.065	0.02	125	T08
T133-250	250	85	2000-2600	30	2.4	1000	250	3	1000	200	5	125	1.02	1.2	0.055	0.01	125	T08C
T133-320	320	85	800-1800	30	1.75	1000	200	2.5	1000	200	7	245	0.85	0.72	0.05	0.01	125	T08
T433-250	250	85	2800-3800	50	2.6	1000	250	3	1000	200	4.5	100	1.3	0.95	0.05	0.01	125	T09C
T433-320	320	85	2000-2600	40	1.95	1000	250	3	1000	200	6	180	1.02	0.75	0.05	0.01	125	T09C
T433-400	400	85	800-1800	30	1.5	1000	2000	2.5	1000	200	8	320	0.92	0.5	0.05	0.01	125	T09
T543-500	500	85	1200-1800	50	1.55	1500	200	2.5	1000	200	10	500	0.91	0.365	0.05	0.01	125	T10
T543-600	600	85	800-1800	50	1.48	1500	200	2.5	1000	200	11	605	0.89	0.26	0.05	0.01	125	T10
T143-400	400	85	3800-4200	70	3.3	1500	250	3	1000	200	5.5	150	1.15	1.3	0.05	0.008	125	T11
T143-500	500	85	2800-3600	70	3.3	1500	250	3	1000	200	5.5	150	1.15	1.3	0.05	0.008	125	T11
T143-630	630	85	2000-2600	50	2.15	1500	250	3	1000	200	8.8	385	1.05	0.58	0.05	0.008	125	T11
T143-800	800	85	1200-1800	30	1.45	1500	200	2.5	1000	200	14	980	0.87	0.26	0.05	0.008	125	T11
T753-800	800	85	2000-2600	50	1.95	1500	250	3	1000	200	11	605	1.02	0.52	0.05	0.008	125	T12
T753-1000	1000	85	800-1800	70	1.5	1500	200	2.5	100	200	16	1280	0.92	0.26	0.05	0.008	125	T12
T153-800	800	85	3800-4200	70	2.6	1500	300	3.5	1000	200	12	720	1.25	0.8	0.05	0.005	125	T13
T153-900	900	85	2800-3600	70	2.8	1500	300	3.5	1000	200	13	720	1.15	0.95	0.05	0.005	125	T13
T153-1000	1000	85	2000-2600	70	2.15	1500	300	3.5	1000	200	15	1125	1.05	0.62	0.023	0.005	125	T13
T153-1250	1250	85	800-1800	50	1.35	1500	250	3	1000	200	18	1620	0.92	0.185	0.023	0.005	125	T13
T353-1000	1000	85	3800-4200	70	3.2	3000	300	3.5	1000	320	14	980	1.3	0.485	0.018	0.005	125	T14
T353-1100	1100	85	2800-3600	70	3.2	3000	300	3.5	1000	320	14	980	1.3	0.485	0.018	0.005	125	T14
T353-1250	1250	85	2000-2600	70	2.15	3000	300	3.5	1000	320	17	1440	1.1	0.28	0.018	0.005	125	T14
T353-1500	1500	85	800-1800	50	1.48	3000	250	3	1000	320	21	2205	0.92	0.156	0.018	0.005	125	T14
T763-1600	1600	85	2000-2600	70	1.9	3000	300	3.5	1000	320	17	1445	1.02	0.28	0.015	0.004	125	T14
T763-1800	1800	85	1200-1800	50	1.55	3000	250	3	1000	320	24	2880	0.93	0.16	0.015	0.004	125	T14
T163-1350	1350	85	3800-4200	100	2.6	3000	300	3.5	1000	320	18	1620	1.2	0.415	0.015	0.004	125	T15
T163-1600	1600	85	2800-3600	70	1.85	3000	300	3.5	1500	320	21	2250	1.05	0.24	0.015	0.004	125	T15
T163-1800	1800	85	2000-2600	70	1.85	3000	300	3.5	1000	320	21	2250	1.05	0.24	0.015	0.004	125	T15
T163-2000	2000	85	1200-1800	50	1.5	3000	250	3	1000	320	29	4205	0.92	0.16	0.015	0.004	125	T15
T773-2000	2000	85	2000-2600	70	2.3	3000	300	3.5	1500	320	24	2880	1.2	0.32	0.012	0.003	125	T15
T773-2300	2300	85	1200-1800	50	2.25	3000	250	3	1000	320	24	2880	1.15	0.29	0.012	0.003	125	T15
T173-1600	1600	85	3800-4200	100	2.3	3000	300	3.5	1500	320	24	2880	1.2	0.32	0.012	0.003	125	T16
T173-2000	2000	85	2800-3600	100	1.95	3000	300	3.5	1500	320	26	3380	1.05	0.24	0.011	0.003	125	T16
T173-2300	2300	85	2000-2600	100	1.65	3000	300	3.5	1500	320	31	4805	1	0.16	0.011	0.00	125	T16
T173-2500	2500	85	1200-1800	70	1.4	3000	300	3.5	1000	320	35	6125	0.92	0.0115	0.011	0.003	125	T16
T183-2500	2500	85	3600-4200	100	2.3	6000	300	3.5	1500	320	34	5780	1.15	0.16	0.009	0.002	125	T17
T183-3000	3000	85	2400-3200	100	1.78	6000	300	3.5	1500	320	42	8820	1.05	0.12	0.009	0.002	125	T17
T193-3200	3200	85	3600-4200	100	2.1	6000	300	3.5	1500	320	45	10125	1.15	0.145	0.007	0.002	125	T18
T193-3700	3700	85	2400-3200	100	1.75	6000	300	3.5	1500	320	54	14580	0.95	0.009	0.007	0.002	125	T18

Type	I_T(AV) @T_C		V_DSM V_RSM	V_DRM VRRM	I_DRM I_RRM	V_TM @ITM		I_GT	V_GT	d_v/d_t	d_i/d_t	I_TSM	I²t	V_TO	r_T	R_thjc	R_thch	T_JM	Fig.
	I_T(AV) @T_C			125℃	25°C				125°C		10ms		125°C
	A	℃	V	V	mA	V	A	mA	V	V/μS	A/μS	KA	kA2s	V	mΩ	℃/W	℃/W	℃
T143-300	300	85	5600-6500	4800-5600	150	2.65	500	300	3.5	1500	200	4.5	100	1.2	2.3	0.038	0.008	125	T11H
T153-700	700	85	5600-6500	4800-5600	150	2.50	1000	300	3.5	1500	200	12	720	1.15	1.02	0.018	0.005	125	T13H
T163-1000	1000	85	5600-6500	4800-5600	200	2.38	1500	300	3.5	1500	320	16	1280	1.2	0.635	0.014	0.004	125	T15H
T173-1250	1250	85	5600-6500	4800-5600	200	2.10	1500	300	3.5	1500	320	29	4205	1.12	0.55	0.011	0.003	125	T16H
T193-2000	2000	85	5600-6500	4800-5600	300	2.10	3000	300	3.5	1500	320	45	10125	1.12	0.31	0.0065	0.0015	125	T18H

Installation Precautions

The modules should be installed and commissioned by an operator with relevant electric, electronic and electrical qualification:

Considering the fluctuation of the grid voltage, the current of load is generally several times larger than its rated current at the start while the thyristor chip is less resistant to current shock, it is recommended that you set the appropriate margin when selecting electric current specifications of the modules.
Module chip's working temperature: -40 ℃ ∽ 125 ℃ for SCR; ambient temperature shall not be higher than 40 ℃; environmental humidity shall be less than 86%.
The environment should be no severe vibration and shock where there should be no metal with corrosion and impurities & air that damagesg the insulation.
For thyristor module ise insulated type (meaning insulation resistance between the module terminals and the copper bottom plate is greater than 2.5KV), multiple modules can be mounted on the same heat sink, with earthing wire.
The installation surface of a radiator should be evenly flat, smooth and without scratches, bumps and debris, and surface finish of the radiator should be less than 10μm.
When power modules are mounted on the radiator, a thin layer of thermal grease should be applied between the contact surfaces. Before grease applying, please remove the oxide layer of the radiator contact surface with fine sandpaper, then wipe the surface with absolute ethanol, so that the contact is good enough to reduce the thermal resistance.
When a module is fastened to the surface of the radiator, please use M5 or M6 screws and spring washers then tighten the screws with 4NM torque.
The connection with main electrodes of the modules should be copper busbars with a smooth surface and good contact. After the modules have been in operation for 3 hours, the screws must be tightened again.

Our team is in dedicate and professional position to provide above information for our customers and related operators to properly deal with what we supply to all over the world. You are welcome to contact us to get such information or data, and please address This email address is being protected from spambots. You need JavaScript enabled to view it.
