Welding diode is one of rectifier diode wihch is a semiconductor device that converts AC power into DC power. Usually it contains a PN junction with both positive and negative terminals. The most important characteristic of a diode is unidirectional conductivity. In the circuit, the current can only flow from the positive pole of the diode and out of the anode.

Welding diodes are designed for medium and high frequency welding equipment and optimized for high current rectifiers. The on-state voltage is very low and the output current is high.

Features

Our welding diodes possess the following features:

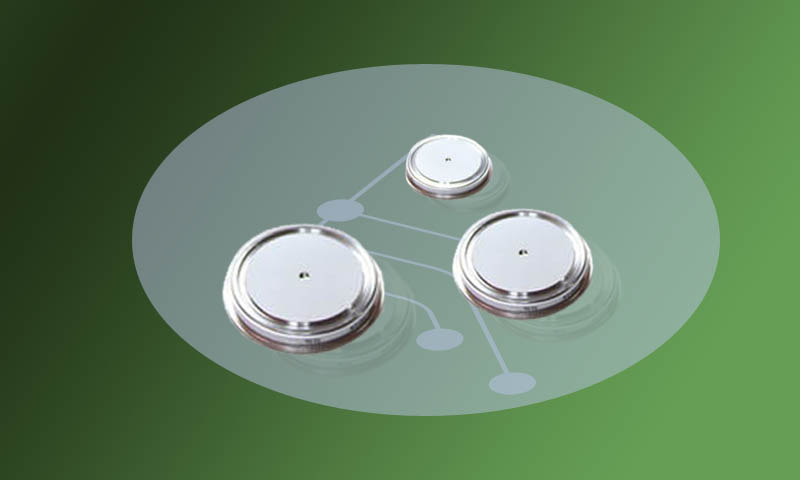

Flat type metal-ceramic packages with pressure contacts.
Very low thermal resistance
Double side cooling design.
Very low on-state voltage.
Very high power cycling capability.

Application & Specification

Application

Our welding diodes are widely used in the following fields:

Electroplating equipment.
Welding equipment.
High power application for power supply .

Specification

Type	I_F(AV) @T_C		V_RRM	I_RRM	V_FM @I_FM=5000A	I_FSM	I²t	V_FO	rF	R_thjc	T_JM	Fig.
					25°C	10ms	10ms	170°C
	A	℃	V	mA	V	KA	kA²s	V	mΩ	℃/W	℃
D053-7100	7100	85	200-400	50	1.05	55	15130	0.7	0.029	0.01	170	D17
D063-11000	11000	85	200-400	50	0.92	85	36120	0.75	0.02	0.006	170	D18

Installation Precautions

The modules should be installed and commissioned by an operator with relevant electric, electronic and electrical qualification:

Considering the fluctuation of the grid voltage, the current of load is generally several times larger than its rated current at the start while the thyristor chip is less resistant to current shock, it is recommended that you set the appropriate margin when selecting electric current specifications of the modules.
Module chip's working temperature: -40 ℃ ∽ 125 ℃ for SCR; ambient temperature shall not be higher than 40 ℃; environmental humidity shall be less than 86%.
The environment should be no severe vibration and shock where there should be no metal with corrosion and impurities & air that damagesg the insulation.
For thyristor module ise insulated type (meaning insulation resistance between the module terminals and the copper bottom plate is greater than 2.5KV), multiple modules can be mounted on the same heat sink, with earthing wire.
The installation surface of a radiator should be evenly flat, smooth and without scratches, bumps and debris, and surface finish of the radiator should be less than 10μm.
When power modules are mounted on the radiator, a thin layer of thermal grease should be applied between the contact surfaces. Before grease applying, please remove the oxide layer of the radiator contact surface with fine sandpaper, then wipe the surface with absolute ethanol, so that the contact is good enough to reduce the thermal resistance.
When a module is fastened to the surface of the radiator, please use M5 or M6 screws and spring washers then tighten the screws with 4NM torque.
The connection with main electrodes of the modules should be copper busbars with a smooth surface and good contact. After the modules have been in operation for 3 hours, the screws must be tightened again.

Our team is in dedicate and professional position to provide above information for our customers and related operators to properly deal with what we supply to all over the world. You are welcome to contact us to get such information or data, and please address This email address is being protected from spambots. You need JavaScript enabled to view it.
