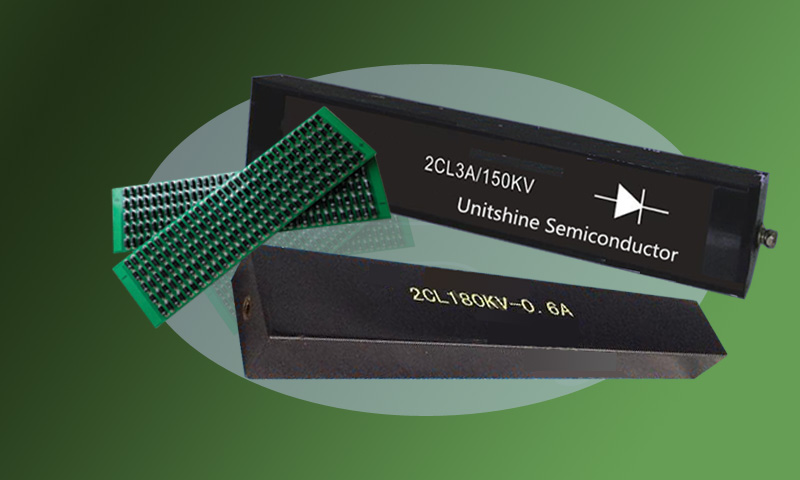

High Voltage Silicon Stack (Low Frequency) is composed of multiple high voltage rectifier diodes (silicon particles) in series, and it is indispensible component for high voltage rectifying circuit from AC current into DC current. This Series of Diode Assembly are well-tailored with good characteristics of big forward current up to 20mA - 5,000mA, and is ideal for such applications as medical devices, ESD equipment etc.

We provide a few kinds of packages as board series, cylinder series, cuboid series, wirelead seriesare, which is available for customer's easy usage and operation.

Features

This series of diodes possess the following features:

Multi optional choices for dimensions and packaging type.
Excellent perfomrance against high voltage surge impact.
Epoxy package with anti-corrosion properties on surface.
Wide range of junction temperature from -40℃～ +150℃.

Specification

5.0A

Type		V_RRM (KV)	I_F(AV) (mA)	I_FSM (A)	V_FM (V)	I_R (μA)	T_rr (nS)
DX-2CL	20KV/5.0A	20	5,000	100	30	10.0	-
DX-2CL	30KV/5.0A	30	5,000	100	45	10.0
DX-2CL	40KV/5.0A	40	5,000	100	60	10.0	-
DX-2CL	50KV/5.0A	50	5,000	100	75	10.0	-
DX-2CL	60KV/5.0A	60	5,000	100	90	10.0	-
DX-2CL	70KV/5.0A	70	5,000	100	105	10.0	-
DX-2CL	80KV/5.0A	80	5,000	100	120	10.0	-
DX-2CL	90KV/5.0A	90	5,000	100	135	10.0	-
DX-2CL	100KV/5.0A	100	5,000	100	150	10.0	-
DX-2CL	110KV/5.0A	110	5,000	100	165	10.0	-
DX-2CL	120KV/5.0A	120	5,000	100	180	10.0	-
DX-2CL	130KV/5.0A	130	5,000	100	195	10.0	-
DX-2CL	140KV/5.0A	140	5,000	100	210	10.0	-
DX-2CL	150KV/5.0A	150	5,000	100	225	10.0	-
DX-2CL	160KV/5.0A	160	5,000	100	240	10.0	-
DX-2CL	170KV/5.0A	170	5,000	100	255	10.0	-
DX-2CL	180KV/5.0A	180	5,000	100	270	10.0	-
DX-2CL	190KV/5.0A	190	5,000	100	285	10.0	-
DX-2CL	200KV/5.0A	200	5,000	100	300	10.0	-

4.0A

Type		V_RRM (KV)	I_F(AV) (mA)	I_FSM (A)	V_FM (V)	I_R (μA)	T_rr (nS)
DX-2CL	20KV/4.0A	20	4,000	80	30	10.0	-
DX-2CL	30KV/4.0A	30	4,000	80	45	10.0
DX-2CL	40KV/4.0A	40	4,000	80	60	10.0	-
DX-2CL	50KV/4.0A	50	4,000	80	75	10.0	-
DX-2CL	60KV/4.0A	60	4,000	80	90	10.0	-
DX-2CL	70KV/4.0A	70	4,000	80	105	10.0	-
DX-2CL	80KV/4.0A	80	4,000	80	120	10.0	-
DX-2CL	90KV/5.0A	90	4,000	80	135	10.0	-
DX-2CL	100KV/4.0A	100	4,000	80	150	10.0	-
DX-2CL	110KV/4.0A	110	4,000	80	165	10.0	-
DX-2CL	120KV/4.0A	120	4,000	80	180	10.0	-
DX-2CL	130KV/4.0A	130	4,000	80	195	10.0	-
DX-2CL	140KV/4.0A	140	4,000	80	210	10.0	-
DX-2CL	150KV/4.0A	150	4,000	80	225	10.0	-
DX-2CL	160KV/4.0A	160	4,000	80	240	10.0	-
DX-2CL	170KV/4.0A	170	4,000	80	255	10.0	-
DX-2CL	180KV/4.0A	180	4,000	80	270	10.0	-
DX-2CL	190KV/4.0A	190	4,000	80	285	10.0	-
DX-2CL	200KV/4.0A	200	4,000	80	300	10.0	-

3.0A

Type		V_RRM (KV)	I_F(AV) (mA)	I_FSM (A)	V_FM (V)	I_R (μA)	T_rr (nS)
DX-2CL	20KV/3.0A	20	3,000	60	30	10.0	-
DX-2CL	30KV/3.0A	30	3,000	60	45	10.0
DX-2CL	40KV/3.0A	40	3,000	60	60	10.0	-
DX-2CL	50KV/3.0A	50	3,000	60	75	10.0	-
DX-2CL	60KV/3.0A	60	3,000	60	90	10.0	-
DX-2CL	70KV/3.0A	70	3,000	60	105	10.0	-
DX-2CL	80KV/3.0A	80	3,000	60	120	10.0	-
DX-2CL	90KV/3.0A	90	3,000	60	135	10.0	-
DX-2CL	100KV/3.0A	100	3,000	60	150	10.0	-
DX-2CL	110KV/3.0A	110	3,000	60	165	10.0	-
DX-2CL	120KV/3.0A	120	3,000	60	180	10.0	-
DX-2CL	130KV/3.0A	130	3,000	60	195	10.0	-
DX-2CL	140KV/3.0A	140	3,000	60	210	10.0	-
DX-2CL	150KV/3.0A	150	3,000	60	225	10.0	-
DX-2CL	160KV/3.0A	160	3,000	60	240	10.0	-
DX-2CL	170KV/3.0A	170	3,000	60	255	10.0	-
DX-2CL	180KV/3.0A	180	3,000	60	270	10.0	-
DX-2CL	190KV/3.0A	190	3,000	60	285	10.0	-
DX-2CL	200KV/3.0A	200	3,000	60	300	10.0	-
DX-2CL	220KV/3.0A	220	3,000	60	330	10.0	-
DX-2CL	240KV/3.0A	240	3,000	60	360	10.0	-
DX-2CL	260KV/3.0A	260	3,000	60	390	10.0	-
DX-2CL	280KV/3.0A	280	3,000	60	420	10.0	-
DX-2CL	300KV/3.0A	300	3,000	60	450	10.0	-

2.5A

Type		V_RRM (KV)	I_F(AV) (mA)	I_FSM (A)	V_FM (V)	I_R (μA)	T_rr (nS)
DX-2CL	20KV/2.5A	20	2,500	50	30	5.0	-
DX-2CL	30KV/2.5A	30	2,500	50	45	5.0
DX-2CL	40KV/2.5A	40	2,500	50	60	5.0	-
DX-2CL	50KV/2.5A	50	2,500	50	75	5.0	-
DX-2CL	60KV/2.5A	60	2,500	50	90	5.0	-
DX-2CL	70KV/2.5A	70	2,500	50	105	5.0	-
DX-2CL	80KV/2.5A	80	2,500	50	120	5.0	-
DX-2CL	90KV/2.5A	90	2,500	50	135	5.0	-
DX-2CL	100KV/2.5A	100	2,500	50	150	5.0	-
DX-2CL	110KV/2.5A	110	2,500	50	165	5.0	-
DX-2CL	120KV/2.5A	120	2,500	50	180	5.0	-
DX-2CL	130KV/2.5A	130	2,500	50	195	5.0	-
DX-2CL	140KV/2.5A	140	2,500	50	210	5.0	-
DX-2CL	150KV/2.5A	150	2,500	50	225	5.0	-
DX-2CL	160KV/2.5A	160	2,500	50	240	5.0	-
DX-2CL	170KV/2.5A	170	2,500	50	255	5.0	-
DX-2CL	180KV/2.5A	180	2,500	50	270	5.0	-
DX-2CL	190KV/2.5A	190	2,500	50	285	5.0	-
DX-2CL	200KV/2.5A	200	2,500	50	300	5.0	-
DX-2CL	220KV/2.5A	220	2,500	50	330	5.0	-
DX-2CL	240KV/2.5A	240	2,500	50	360	5.0	-
DX-2CL	260KV/2.5A	260	2,500	50	390	5.0	-
DX-2CL	280KV/2.5A	280	2,500	50	320	5.0	-
DX-2CL	300KV/2.5A	300	2,500	50	350	5.0	-

2.0A

Type		V_RRM (KV)	I_F(AV) (mA)	I_FSM (A)	V_FM (V)	I_R (μA)	T_rr (nS)
DX-2CL	20KV/2.0A	20	2,000	40	30	5.0	-
DX-2CL	30KV/2.0A	30	2,000	40	45	5.0
DX-2CL	40KV/2.0A	40	2,000	40	60	5.0	-
DX-2CL	50KV/2.0A	50	2,000	40	75	5.0	-
DX-2CL	60KV/2.0A	60	2,000	40	90	5.0	-
DX-2CL	70KV/2.0A	70	2,000	40	105	5.0	-
DX-2CL	80KV/2.0A	80	2,000	40	120	5.0	-
DX-2CL	90KV/2.0A	90	2,000	40	135	5.0	-
DX-2CL	100KV/2.0A	100	2,000	40	150	5.0	-
DX-2CL	110KV/2.0A	110	2,000	40	165	5.0	-
DX-2CL	120KV/2.0A	120	2,000	40	180	5.0	-
DX-2CL	130KV/2.0A	130	2,000	40	195	5.0	-
DX-2CL	140KV/2.0A	140	2,000	40	210	5.0	-
DX-2CL	150KV/2.0A	150	2,000	40	225	5.0	-
DX-2CL	160KV/2.0A	160	2,000	40	240	5.0	-
DX-2CL	170KV/2.0A	170	2,000	40	255	5.0	-
DX-2CL	180KV/2.0A	180	2,000	40	270	5.0	-
DX-2CL	190KV/2.0A	190	2,000	40	285	5.0	-
DX-2CL	200KV/2.0A	200	2,000	40	300	5.0	-
DX-2CL	220KV/2.0A	220	2,000	40	330	5.0	-
DX-2CL	240KV/2.0A	240	2,000	40	360	5.0	-
DX-2CL	260KV/2.0A	260	2,000	40	390	5.0	-
DX-2CL	280KV/2.0A	280	2,000	40	420	5.0	-
DX-2CL	300KV/2.0A	300	2,000	40	450	5.0	-
DX-2CL	320KV/2.0A	320	2,000	40	480	5.0	-
DX-2CL	340KV/2.0A	340	2,000	40	510	5.0	-
DX-2CL	360KV/2.0A	360	2,000	40	540	5.0	-
DX-2CL	380KV/2.0A	380	2,000	40	570	5.0	-
DX-2CL	400KV/2.0A	400	2,000	40	600	5.0	-

1.5A

Type		V_RRM (KV)	I_F(AV) (mA)	I_FSM (A)	V_FM (V)	I_R (μA)	T_rr (nS)
DX-2CL	20KV/1.5A	20	1,500	30	30	5.0	-
DX-2CL	30KV/1.5A	30	1,500	30	45	5.0
DX-2CL	40KV/1.5A	40	1,500	30	60	5.0	-
DX-2CL	50KV/1.5A	50	1,500	30	75	5.0	-
DX-2CL	60KV/1.5A	60	1,500	30	90	5.0	-
DX-2CL	70KV/1.5A	70	1,500	30	105	5.0	-
DX-2CL	80KV/1.5A	80	1,500	30	120	5.0	-
DX-2CL	90KV/1.5A	90	1,500	30	135	5.0	-
DX-2CL	100KV/1.5A	100	1,500	30	150	5.0	-
DX-2CL	110KV/1.5A	110	1,500	30	165	5.0	-
DX-2CL	120KV/1.5A	120	1,500	30	180	5.0	-
DX-2CL	130KV/1.5A	130	1,500	30	195	5.0	-
DX-2CL	140KV/1.5A	140	1,500	30	210	5.0	-
DX-2CL	150KV/1.5A	150	1,500	30	225	5.0	-
DX-2CL	160KV/1.5A	160	1,500	30	240	5.0	-
DX-2CL	170KV/1.5A	170	1,500	30	255	5.0	-
DX-2CL	180KV/1.5A	180	1,500	30	270	5.0	-
DX-2CL	190KV/1.5A	190	1,500	30	285	5.0	-
DX-2CL	200KV/1.5A	200	1,500	30	300	5.0	-
DX-2CL	220KV/1.5A	220	1,500	30	330	5.0	-
DX-2CL	240KV/1.5A	240	1,500	30	360	5.0	-
DX-2CL	260KV/1.5A	260	1,500	30	390	5.0	-
DX-2CL	280KV/1.5A	280	1,500	30	420	5.0	-
DX-2CL	300KV/1.5A	300	1,500	30	450	5.0	-
DX-2CL	320KV/1.5A	320	1,500	30	480	5.0	-
DX-2CL	340KV/1.5A	340	1,500	30	510	5.0	-
DX-2CL	360KV/1.5A	360	1,500	30	540	5.0	-
DX-2CL	380KV/1.5A	380	1,500	30	570	5.0	-
DX-2CL	400KV/1.5A	400	1,500	30	600	5.0	-

1.0A

Type		V_RRM (KV)	I_F(AV) (mA)	I_FSM (A)	V_FM (V)	I_R (μA)	T_rr (nS)
DX-2CL	20KV/1.0A	20	1,000	20	30	5.0	-
DX-2CL	30KV/1.0A	30	1,000	20	45	5.0
DX-2CL	40KV/1.0A	40	1,000	20	60	5.0	-
DX-2CL	50KV/1.0A	50	1,000	20	75	5.0	-
DX-2CL	60KV/1.0A	60	1,000	20	90	5.0	-
DX-2CL	70KV/1.0A	70	1,000	20	105	5.0	-
DX-2CL	80KV/1.0A	80	1,000	20	120	5.0	-
DX-2CL	90KV/1.0A	90	1,000	20	135	5.0	-
DX-2CL	100KV/1.0A	100	1,000	20	150	5.0	-
DX-2CL	110KV/1.0A	110	1,000	20	165	5.0	-
DX-2CL	120KV/1.0A	120	1,000	20	180	5.0	-
DX-2CL	130KV/1.0A	130	1,000	20	195	5.0	-
DX-2CL	140KV/1.0A	140	1,000	20	210	5.0	-
DX-2CL	150KV/1.0A	150	1,000	20	225	5.0	-
DX-2CL	160KV/1.0A	160	1,000	20	240	5.0	-
DX-2CL	170KV/1.0A	170	1,000	20	255	5.0	-
DX-2CL	180KV/1.0A	180	1,000	20	270	5.0	-
DX-2CL	190KV/1.0A	190	1,000	20	285	5.0	-
DX-2CL	200KV/1.0A	200	1,000	20	300	5.0	-
DX-2CL	220KV/1.0A	220	1,000	20	330	5.0	-
DX-2CL	240KV/1.0A	240	1,000	20	360	5.0	-
DX-2CL	260KV/1.0A	260	1,000	20	390	5.0	-
DX-2CL	280KV/1.0A	280	1,000	20	420	5.0	-
DX-2CL	300KV/1.0A	300	1,000	20	450	5.0	-
DX-2CL	320KV/1.0A	320	1,000	20	480	5.0	-
DX-2CL	340KV/1.0A	340	1,000	20	510	5.0	-
DX-2CL	360KV/1.0A	360	1,000	20	540	5.0	-
DX-2CL	380KV/1.0A	380	1,000	20	570	5.0	-
DX-2CL	400KV/1.0A	400	1,000	20	600	5.0	-

0.5A

Type		V_RRM (KV)	I_F(AV) (mA)	I_FSM (A)	V_FM (V)	I_R (μA)	T_rr (nS)
DX-2CL	20KV/0.5A	20	500	20	30	2.0	-
DX-2CL	30KV/0.5A	30	500	20	45	2.0
DX-2CL	40KV/0.5A	40	500	20	60	2.0	-
DX-2CL	50KV/0.5A	50	500	20	75	2.0	-
DX-2CL	60KV/0.5A	60	500	20	90	2.0	-
DX-2CL	70KV/0.5A	70	500	20	105	2.0	-
DX-2CL	80KV/0.5A	80	500	20	120	2.0	-
DX-2CL	90KV/0.5A	90	500	20	135	2.0	-
DX-2CL	100KV/0.5A	100	500	20	150	2.0	-
DX-2CL	110KV/0.5A	110	500	20	165	2.0	-
DX-2CL	120KV/0.5A	120	500	20	180	2.0	-
DX-2CL	130KV/0.5A	130	500	20	195	2.0	-
DX-2CL	140KV/0.5A	140	500	20	210	2.0	-
DX-2CL	150KV/0.5A	150	500	20	225	2.0	-
DX-2CL	160KV/0.5A	160	500	20	240	2.0	-
DX-2CL	170KV/0.5A	170	500	20	255	2.0	-
DX-2CL	180KV/0.5A	180	500	20	270	2.0	-
DX-2CL	190KV/0.5A	190	500	20	285	2.0	-
DX-2CL	200KV/0.5A	200	500	20	300	2.0	-
DX-2CL	220KV/0.5A	220	500	20	330	2.0	-
DX-2CL	240KV/0.5A	240	500	20	360	2.0	-
DX-2CL	260KV/0.5A	260	500	20	390	2.0	-
DX-2CL	280KV/0.5A	280	500	20	420	2.0	-
DX-2CL	300KV/0.5A	300	500	20	450	2.0	-
DX-2CL	320KV/0.5A	320	500	20	480	2.0	-
DX-2CL	340KV/0.5A	340	500	20	510	2.0	-
DX-2CL	360KV/0.5A	360	500	20	540	2.0	-
DX-2CL	380KV/0.5A	380	500	20	570	2.0	-
DX-2CL	400KV/0.5A	400	500	20	600	2.0	-
DX-2CL	420KV/0.5A	420	500	20	630	2.0	-
DX-2CL	440KV/0.5A	440	500	20	660	2.0	-
DX-2CL	460KV/0.5A	460	500	20	690	2.0	-
DX-2CL	480KV/0.5A	480	500	20	720	2.0	-
DX-2CL	500KV/0.5A	500	500	20	750	2.0	-

0.3A

Type		V_RRM (KV)	I_F(AV) (mA)	I_FSM (A)	V_FM (V)	I_R (μA)	T_rr (nS)
DX-2CL	20KV/0.3A	20	300	15	30	2.0	-
DX-2CL	30KV/0.3A	30	300	15	45	2.0
DX-2CL	40KV/0.3A	40	300	15	60	2.0	-
DX-2CL	50KV/0.3A	50	300	15	75	2.0	-
DX-2CL	60KV/0.3A	60	300	15	90	2.0	-
DX-2CL	70KV/0.3A	70	300	15	105	2.0	-
DX-2CL	80KV/0.3A	80	300	15	120	2.0	-
DX-2CL	90KV/0.3A	90	300	15	135	2.0	-
DX-2CL	100KV/0.3A	100	300	15	150	2.0	-
DX-2CL	110KV/0.3A	110	300	15	165	2.0	-
DX-2CL	120KV/0.3A	120	300	15	180	2.0	-
DX-2CL	130KV/0.3A	130	300	15	195	2.0	-
DX-2CL	140KV/0.3A	140	300	15	210	2.0	-
DX-2CL	150KV/0.3A	150	300	15	225	2.0	-
DX-2CL	160KV/0.3A	160	300	15	240	2.0	-
DX-2CL	170KV/0.3A	170	300	15	255	2.0	-
DX-2CL	180KV/0.3A	180	300	15	270	2.0	-
DX-2CL	190KV/0.3A	190	300	15	285	2.0	-
DX-2CL	200KV/0.3A	200	300	15	300	2.0	-
DX-2CL	220KV/0.5A	220	300	15	330	2.0	-
DX-2CL	240KV/0.3A	240	300	15	360	2.0	-
DX-2CL	260KV/0.3A	260	300	15	390	2.0	-
DX-2CL	280KV/0.3A	280	300	15	420	2.0	-
DX-2CL	300KV/0.3A	300	300	15	450	2.0	-
DX-2CL	320KV/0.3A	320	300	15	480	2.0	-
DX-2CL	340KV/0.3A	340	300	15	510	2.0	-
DX-2CL	360KV/0.3A	360	300	15	540	2.0	-
DX-2CL	380KV/0.3A	380	300	15	570	2.0	-
DX-2CL	400KV/0.3A	400	300	15	600	2.0	-
DX-2CL	420KV/0.3A	420	300	15	630	2.0	-
DX-2CL	440KV/0.3A	440	300	15	660	2.0	-
DX-2CL	460KV/0.3A	460	300	15	690	2.0	-
DX-2CL	480KV/0.3A	480	300	15	720	2.0	-
DX-2CL	500KV/0.3A	500	300	15	750	2.0	-

0.2A

Type		V_RRM (KV)	I_F(AV) (mA)	I_FSM (A)	V_FM (V)	I_R (μA)	T_rr (nS)
DX-2CL	20KV/0.2A	20	200	10	30	2.0	-
DX-2CL	30KV/0.2A	30	200	10	45	2.0
DX-2CL	40KV/0.2A	40	200	10	60	2.0	-
DX-2CL	50KV/0.2A	50	200	10	75	2.0	-
DX-2CL	60KV/0.2A	60	200	10	90	2.0	-
DX-2CL	70KV/0.2A	70	200	10	105	2.0	-
DX-2CL	80KV/0.2A	80	200	10	120	2.0	-
DX-2CL	90KV/0.2A	90	200	10	135	2.0	-
DX-2CL	100KV/0.2A	100	200	10	150	2.0	-
DX-2CL	110KV/0.2A	110	200	10	165	2.0	-
DX-2CL	120KV/0.2A	120	200	10	180	2.0	-
DX-2CL	130KV/0.2A	130	200	10	195	2.0	-
DX-2CL	140KV/0.2A	140	200	10	210	2.0	-
DX-2CL	150KV/0.2A	150	200	10	225	2.0	-
DX-2CL	160KV/0.2A	160	200	10	240	2.0	-
DX-2CL	170KV/0.2A	170	200	10	255	2.0	-
DX-2CL	180KV/0.2A	180	200	10	270	2.0	-
DX-2CL	190KV/0.2A	190	200	10	285	2.0	-
DX-2CL	200KV/0.2A	200	200	10	300	2.0	-
DX-2CL	220KV/0.2A	220	200	10	330	2.0	-
DX-2CL	240KV/0.2A	240	200	10	360	2.0	-
DX-2CL	260KV/0.2A	260	200	10	390	2.0	-
DX-2CL	280KV/0.2A	280	200	10	420	2.0	-
DX-2CL	300KV/0.2A	300	200	10	450	2.0	-
DX-2CL	320KV/0.2A	320	200	10	480	2.0	-
DX-2CL	340KV/0.2A	340	200	10	510	2.0	-
DX-2CL	360KV/0.2A	360	200	10	540	2.0	-
DX-2CL	380KV/0.2A	380	200	10	570	2.0	-
DX-2CL	400KV/0.2A	400	200	10	600	2.0	-
DX-2CL	420KV/0.2A	420	200	10	630	2.0	-
DX-2CL	440KV/0.2A	440	200	10	660	2.0	-
DX-2CL	460KV/0.2A	460	200	10	690	2.0	-
DX-2CL	480KV/0.2A	480	200	10	720	2.0	-
DX-2CL	500KV/0.2A	500	200	10	750	2.0	-

0.1A

Type		V_RRM (KV)	I_F(AV) (mA)	I_FSM (A)	V_FM (V)	I_R (μA)	T_rr (nS)
DX-2CL	20KV/0.1A	20	100	5	30	2.0	-
DX-2CL	30KV/0.1A	30	100	5	45	2.0
DX-2CL	40KV/0.1A	40	100	5	60	2.0	-
DX-2CL	50KV/0.1A	50	100	5	75	2.0	-
DX-2CL	60KV/0.1A	60	100	5	90	2.0	-
DX-2CL	70KV/0.1A	70	100	5	105	2.0	-
DX-2CL	80KV/0.1A	80	100	5	120	2.0	-
DX-2CL	90KV/0.1A	90	100	5	135	2.0	-
DX-2CL	100KV/0.1A	100	100	5	150	2.0	-
DX-2CL	110KV/0.1A	110	100	5	165	2.0	-
DX-2CL	120KV/0.1A	120	100	5	180	2.0	-
DX-2CL	130KV/0.1A	130	100	5	195	2.0	-
DX-2CL	140KV/0.1A	140	100	5	210	2.0	-
DX-2CL	150KV/0.1A	150	100	5	225	2.0	-
DX-2CL	160KV/0.1A	160	100	5	240	2.0	-
DX-2CL	170KV/0.1A	170	100	5	255	2.0	-
DX-2CL	180KV/0.1A	180	100	5	270	2.0	-
DX-2CL	190KV/0.1A	190	100	5	285	2.0	-
DX-2CL	200KV/0.1A	200	100	5	300	2.0	-
DX-2CL	220KV/0.1A	220	100	5	330	2.0	-
DX-2CL	240KV/0.1A	240	100	5	360	2.0	-
DX-2CL	260KV/0.1A	260	100	5	390	2.0	-
DX-2CL	280KV/0.1A	280	100	5	420	2.0	-
DX-2CL	300KV/0.1A	300	100	5	450	2.0	-
DX-2CL	320KV/0.1A	320	100	5	480	2.0	-
DX-2CL	340KV/0.1A	340	100	5	510	2.0	-
DX-2CL	360KV/0.1A	360	100	5	540	2.0	-
DX-2CL	380KV/0.1A	380	100	5	570	2.0	-
DX-2CL	400KV/0.1A	400	100	5	600	2.0	-
DX-2CL	420KV/0.1A	420	100	5	630	2.0	-
DX-2CL	440KV/0.1A	440	100	5	660	2.0	-
DX-2CL	460KV/0.1A	460	100	5	690	2.0	-
DX-2CL	480KV/0.1A	480	100	5	720	2.0	-
DX-2CL	500KV/0.1A	500	100	5	750	2.0	-

0.05A

Type		V_RRM (KV)	I_F(AV) (mA)	I_FSM (A)	V_FM (V)	I_R (μA)	T_rr (nS)
DX-2CL	20KV/0.05A	20	50	2	30	2.0	-
DX-2CL	30KV/0.05A	30	50	2	45	2.0
DX-2CL	40KV/0.05A	40	50	2	60	2.0	-
DX-2CL	50KV/0.05A	50	50	2	75	2.0	-
DX-2CL	60KV/0.05A	60	50	2	90	2.0	-
DX-2CL	70KV/0.05A	70	50	2	105	2.0	-
DX-2CL	80KV/0.05A	80	50	2	120	2.0	-
DX-2CL	90KV/0.05A	90	50	2	135	2.0	-
DX-2CL	100KV/0.05A	100	50	2	150	2.0	-
DX-2CL	110KV/0.05A	110	50	2	165	2.0	-
DX-2CL	120KV/0.05A	120	50	2	180	2.0	-
DX-2CL	130KV/0.05A	130	50	2	195	2.0	-
DX-2CL	140KV/0.05A	140	50	2	210	2.0	-
DX-2CL	150KV/0.05A	150	50	2	225	2.0	-
DX-2CL	160KV/0.05A	160	50	2	240	2.0	-
DX-2CL	170KV/0.05A	170	50	2	255	2.0	-
DX-2CL	180KV/0.05A	180	50	2	270	2.0	-
DX-2CL	190KV/0.05A	190	50	2	285	2.0	-
DX-2CL	200KV/0.05A	200	50	2	300	2.0	-
DX-2CL	220KV/0.05A	220	50	2	330	2.0	-
DX-2CL	240KV/0.05A	240	50	2	360	2.0	-
DX-2CL	260KV/0.05A	260	50	2	390	2.0	-
DX-2CL	280KV/0.05A	280	50	2	420	2.0	-
DX-2CL	300KV/0.05A	300	50	2	450	2.0	-
DX-2CL	320KV/0.05A	320	50	2	480	2.0	-
DX-2CL	340KV/0.05A	340	50	2	510	2.0	-
DX-2CL	360KV/0.05A	360	50	2	540	2.0	-
DX-2CL	380KV/0.05A	380	50	2	570	2.0	-
DX-2CL	400KV/0.05A	400	50	2	600	2.0	-
DX-2CL	420KV/0.05A	420	50	2	630	2.0	-
DX-2CL	440KV/0.05A	440	50	2	660	2.0	-
DX-2CL	460KV/0.05A	460	50	2	690	2.0	-
DX-2CL	480KV/0.05A	480	50	2	720	2.0	-
DX-2CL	500KV/0.05A	500	50	2	750	2.0	-

0.02A

Type		V_RRM (KV)	I_F(AV) (mA)	I_FSM (A)	V_FM (V)	I_R (μA)	T_rr (nS)
DX-2CL	20KV/0.02A	20	20	1	30	2.0	-
DX-2CL	30KV/0.02A	30	20	1	45	2.0
DX-2CL	40KV/0.02A	40	20	1	60	2.0	-
DX-2CL	50KV/0.02A	50	20	1	75	2.0	-
DX-2CL	60KV/0.02A	60	20	1	90	2.0	-
DX-2CL	70KV/0.02A	70	20	1	105	2.0	-
DX-2CL	80KV/0.02A	80	20	1	120	2.0	-
DX-2CL	90KV/0.02A	90	20	1	135	2.0	-
DX-2CL	100KV/0.02A	100	20	1	150	2.0	-
DX-2CL	110KV/0.02A	110	20	1	165	2.0	-
DX-2CL	120KV/0.02A	120	20	1	180	2.0	-
DX-2CL	130KV/0.02A	130	20	1	195	2.0	-
DX-2CL	140KV/0.02A	140	20	1	210	2.0	-
DX-2CL	150KV/0.02A	150	20	1	225	2.0	-
DX-2CL	160KV/0.02A	160	20	1	240	2.0	-
DX-2CL	170KV/0.02A	170	20	1	255	2.0	-
DX-2CL	180KV/0.02A	180	20	1	270	2.0	-
DX-2CL	190KV/0.02A	190	20	1	285	2.0	-
DX-2CL	200KV/0.02A	200	20	1	300	2.0	-
DX-2CL	220KV/0.02A	220	20	1	330	2.0	-
DX-2CL	240KV/0.02A	240	20	1	360	2.0	-
DX-2CL	260KV/0.02A	260	20	1	390	2.0	-
DX-2CL	280KV/0.02A	280	20	1	420	2.0	-
DX-2CL	300KV/0.02A	300	20	1	450	2.0	-
DX-2CL	320KV/0.02A	320	20	1	480	2.0	-
DX-2CL	340KV/0.02A	340	20	1	510	2.0	-
DX-2CL	360KV/0.02A	360	20	1	540	2.0	-
DX-2CL	380KV/0.02A	380	20	1	570	2.0	-
DX-2CL	400KV/0.02A	400	20	1	600	2.0	-
DX-2CL	420KV/0.02A	420	20	1	630	2.0	-
DX-2CL	440KV/0.02A	440	20	1	660	2.0	-
DX-2CL	460KV/0.02A	460	20	1	690	2.0	-
DX-2CL	480KV/0.02A	480	20	1	720	2.0	-
DX-2CL	500KV/0.02A	500	20	1	750	2.0	-

Application

Application
Installation Precautions

Application

Our diodes are widely used in the following fields:

Medical electronic syste as X ray machines etc.
Laser technical engineering equipment as CO2 laser device.
Modulation power supply for rader system.
Electrostatic dedusting system and spray coating system.
DC high voltage generating system.

Installation Precautions

The diodes should be installed and commissioned by an operator with relevant electric, electronic and electrical qualification:

Precausions for Designing
1.The diodes must be used within the specified limits of work and environmental conditions (maximum absolute ratings), otherwise it will possibly cause damage to the devices. In review of reliability for design, it is necessary for the equipment manufacturer and the circuit designers to make appropriate derating designs for the devices.
2. As the pursuit of miniaturization is concern for the designers of high voltage diode, it is necessary in the application of epoxy resin and other materials for secondary packaging to ensure insulation.
2-1.It is recommended to use epoxy resin for secondary packaging, and the operator should pay attention to the expansion of packaging materials and shrinkage stress, the package should avoid air bubble to ensure that the insulator performance.
2-2.The surface of the high voltage diodes should be kept clean so that good interface for second packaging is well bonded.

Storage Note
1.High voltage diodes should be stored in the environment with temperature range of from 5 ℃ to 35 ℃ and relative humidity below 70%. To avoid the impact of the surrounding environment, immediate usage is recommended after open the package.
2.Such storage places with corrosive gases and dust should be avoided;
3.In case when high voltage diodes stores is more than 6 months, drying shall be applied in oven with temperature of 120 ℃ ± 5 ℃ for not less than 24 hours in order to avoid the impact of temperature.

Our team is in dedicate and professional position to provide above information for our customers and related operators to properly deal with what we supply to all over the world. You are welcome to contact us to get such information or data, and please address This email address is being protected from spambots. You need JavaScript enabled to view it.

Low Frequency Silicon Stack

5.0A

Application
