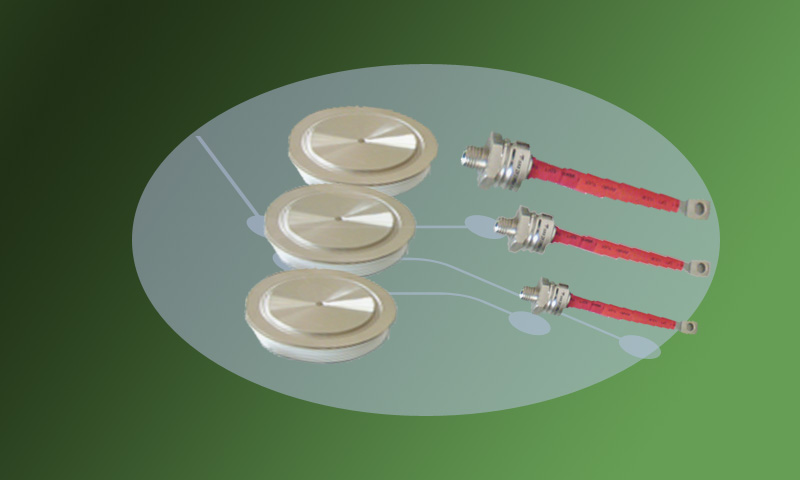

General Rectifier Diode - Unitshine Semiconductor

unitshine-rectifier-general

Rectifier diode is a semiconductor device that converts AC power into DC power. Usually it contains a PN junction with both positive and negative terminals. The most important characteristic of a diode is unidirectional conductivity. In the circuit, the current can only flow from the positive pole of the diode and out of the anode.

Features

Our rectifier diodes possess the following features:

Diffusion technology.
Flat type metal-ceramic packages with pressure contacts.
Double side cooling design.
Great current and high voltage.

Application & Specification

Application

Our rectifier diodes are widely used in the following fields:

High power convertor.
Welding equipment.
Motor control and driving.
Electroplating equipment.

Specification

Type	I_F（AV） @T_C		V_RRM	I_RRM	V_FM @I_FM		I_FSM	I²t	V_FO	rF	R_thjc	R_thch	T_JM	Fig.
	I_F（AV） @T_C				25°C			10ms	150℃
	A	℃	V	mA	V	A	KA	KA²S	V	mΩ	℃/W	℃/W	℃
D123-250	250	100	2400-3800	35	2.05	800	4	80	0.93	1.3	0.09	0.01	150	D07C
D123-320	320	100	1800-2200	35	1.85	800	5.5	150	0.82	1.1	0.09	0.01	150	D07
D123-400	400	100	600-1400	35	1.45	800	7	245	0.8	0.66	0.09	0.01	150	D07
D423-400	400	100	1600-2200	35	1.65	800	6	180	0.8	1.05	0.08	0.01	150	D08
D423-500	500	100	600-1400	35	1.45	800	8	320	0.78	0.62	0.08	0.01	150	D08
D133-400	400	100	2400-3400	50	2.15	1500	9	400	0.9	0.645	0.046	0.01	150	D08C
D133-500	500	100	1600-2200	40	1.65	1500	11.5	660	0.82	0.455	0.046	0.01	150	D08
D133-630	630	100	800-1400	35	1.45	1500	15	1125	0.8	0.268	0.046	0.01	150	D08
D433-400	400	100	3600-4400	50	2.2	1500	7	245	0.96	0.698	0.046	0.009	150	D09C
D433-500	500	100	2400-3400	50	1.9	1500	11	605	0.89	0.595	0.036	0.009	150	D09C
D433-630	630	100	1600-2200	40	1.5	1500	13.5	912	0.82	0.425	0.036	0.009	150	D09
D433-800	800	100	800-1400	35	1.3	1500	17	1445	0.78	0.255	0.036	0.009	150	D09
D543-630	630	100	3600-4400	50	1.95	1500	9	405	0.96	0.605	0.036	0.008	150	D10
D543-800	800	100	2400-3400	50	1.65	1500	14	980	0.88	0.455	0.036	0.008	150	D10
D543-1000	1000	100	1600-2200	40	1.45	1500	16.5	1360	0.82	0.318	0.036	0.008	150	D10
D543-1250	1250	100	800-1400	40	1.25	1500	20	2000	0.78	0.188	0.036	0.008	150	D10
D143-1250	1250	100	1600-2200	50	1.4	1500	18	1620	0.82	0.305	0.033	0.007	150	D11
D143-1500	1500	100	800-17400	50	1.2	1500	22	2420	0.78	0.175	0.033	0.007	150	D11
D753-1500	1500	100	1600-2200	65	1.3	1500	23	2645	0.82	0.285	0.033	0.006	150	D12
D753-1800	1800	100	600-1400	65	1.1	1500	28	3920	0.8	0.145	0.033	0.006	150	D12
D153-1000	1000	100	3600-4400	70	1.65	1500	18	1620	0.96	0.295	0.033	0.005	150	D13
D153-1300	1300	100	2400-3400	65	1.45	1500	22.5	2530	0.88	0.205	0.033	0.005	150	D13
D153-1600	1600	100	1600-2200	65	1.25	1500	26	3380	0.82	0.165	0.033	0.005	150	D13
D153-2000	2000	100	800-1400	70	1.05	1500	32	5120	0.78	0.095	0.033	0.005	150	D13
D353-1800	1800	100	2400-3400	90	1.65	3000	28	3920	0.86	0.185	0.033	0.005	150	D14
D353-2000	2000	100	1600-2200	65	1.4	3000	33	5445	0.81	0.128	0.033	0.005	150	D14
D353-2500	2500	100	800-1400	65	1.2	3000	42	8820	0.77	0.075	0.033	0.005	150	D14
D763-2300	2300	100	2400-3400	100	1.6	3000	38	7220	0.86	0.176	0.033	0.004	150	D14
D763-2700	2700	100	1600-2200	90	1.35	3000	46	10580	0.82	0.125	0.033	0.004	150	D14
D163-2000	2000	100	3400-4400	130	1.6	3000	26	3380	0.96	0.168	0.033	0.004	150	D15
D163-2700	2700	100	2400-3200	130	1.4	3000	33	5445	0.86	0.125	0.033	0.004	150	D15
D163-3200	3200	100	1600-2200	130	1.25	3000	41	8405	0.81	0.088	0.033	0.004	150	D15
D163-4000	4000	100	800-1400	130	1.05	3000	52	13520	0.77	0.052	0.033	0.004	150	D15
D173-2700	27000	1000	3600-4400	150	1.9	6000	34	5780	0.96	0.115	0.011	0.003	150	D16
D173-3500	3500	100	2400-3400	150	1.65	6000	46	10580	0.86	0.085	0.011	0.003	150	D16
D173-4000	4000	100	1600-2200	150	1.45	6000	55	15125	0.81	0.061	0.011	0.003	150	D16
D173-5000	5000	100	800-1400	150	1.25	6000	71	25205	0.76	0.035	0.011	0.003	150	D16

Installation Precautions

The modules should be installed and commissioned by an operator with relevant electric, electronic and electrical qualification:

Considering the fluctuation of the grid voltage, the current of load is generally several times larger than its rated current at the start while the thyristor chip is less resistant to current shock, it is recommended that you set the appropriate margin when selecting electric current specifications of the modules.
Module chip's working temperature: -40 ℃ ∽ 125 ℃ for SCR; ambient temperature shall not be higher than 40 ℃; environmental humidity shall be less than 86%.
The environment should be no severe vibration and shock where there should be no metal with corrosion and impurities & air that damagesg the insulation.
For thyristor module ise insulated type (meaning insulation resistance between the module terminals and the copper bottom plate is greater than 2.5KV), multiple modules can be mounted on the same heat sink, with earthing wire.
The installation surface of a radiator should be evenly flat, smooth and without scratches, bumps and debris, and surface finish of the radiator should be less than 10μm.
When power modules are mounted on the radiator, a thin layer of thermal grease should be applied between the contact surfaces. Before grease applying, please remove the oxide layer of the radiator contact surface with fine sandpaper, then wipe the surface with absolute ethanol, so that the contact is good enough to reduce the thermal resistance.
When a module is fastened to the surface of the radiator, please use M5 or M6 screws and spring washers then tighten the screws with 4NM torque.
The connection with main electrodes of the modules should be copper busbars with a smooth surface and good contact. After the modules have been in operation for 3 hours, the screws must be tightened again.

Our team is in dedicate and professional position to provide above information for our customers and related operators to properly deal with what we supply to all over the world. You are welcome to contact us to get such information or data, and please address This email address is being protected from spambots. You need JavaScript enabled to view it.
