Macro Current - Unitshine Semiconductor

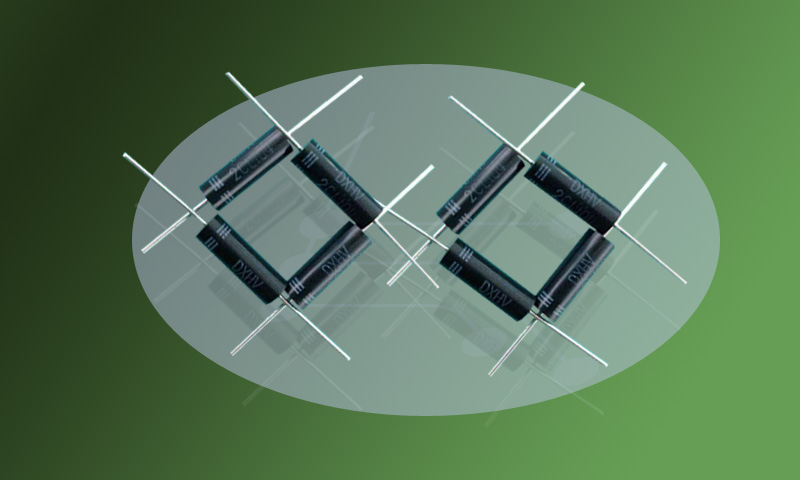

unitshine-hv-diode-macro Macro Current Series are well-tailored high voltage diodes with characteristics of small forward current up to 350mA - 600mA, multi-choices of peak reverse voltage up to 18KV.

Macro Current are ideal for such purpose and applications as rectification for high frequency high voltage power supplies, laser power supply, voltage multiplying circuits etc.

Features

This series of diodes possess the following features:

High junction temperature up to -40℃ ～175℃.
Low forward voltage drop, and small current leakage.
Avalanche breakdown protection.
Excellent properties against HV surge impact.
Axial leading wires which are weldable.
Epoxy package with anti-corrosion properties on surface.

Application & Specification

Application

Our diodes are widely used in the following fields:

Industrial microwave power supplies .
Miniature medical device.
Laser power supplies.
Voltage multiplying circuits.
Rectification of power supplies for other electronic devices.

Type	V_RRM (KV)	I_F(AV) (mA)	I_FSM (A)	V_FM(V) I_FM=10mA	I_R(μA)	Trr (nS)
Ta=25°C	Ta=100°C
DX-HV	600S10	10	600	40	15.0	5.0	50	-
DX-HV	600S12	12	600	40	18.0	5.0	50	-
DX-HV	104	10	350	30	15.0	5.0	50	-
DX-HV	106	12	450	30	16.0	5.0	50	-

Type	A	B(Min)	Φ 1	Φ 2
600S10, S12	22	20	7.5	1.2
2CL104, 106	21	20	7	1.2

Installation Precautions

The diodes should be installed and commissioned by an operator with relevant electric, electronic and electrical qualification:

Precausions for Designing
1.The diodes must be used within the specified limits of work and environmental conditions (maximum absolute ratings), otherwise it will possibly cause damage to the devices. In review of reliability for design, it is necessary for the equipment manufacturer and the circuit designers to make appropriate derating designs for the devices.
2. As the pursuit of miniaturization is concern for the designers of high voltage diode, it is necessary in the application of epoxy resin and other materials for secondary packaging to ensure insulation.
2-1.It is recommended to use epoxy resin for secondary packaging, and the operator should pay attention to the expansion of packaging materials and shrinkage stress, the package should avoid air bubble to ensure that the insulator performance.
2-2.The surface of the high voltage diodes should be kept clean so that good interface for second packaging is well bonded.

Storage Note
1.High voltage diodes should be stored in the environment with temperature range of from 5 ℃ to 35 ℃ and relative humidity below 70%. To avoid the impact of the surrounding environment, immediate usage is recommended after open the package.
2.Such storage places with corrosive gases and dust should be avoided;
3.In case when high voltage diodes stores is more than 6 months, drying shall be applied in oven with temperature of 120 ℃ ± 5 ℃ for not less than 24 hours in order to avoid the impact of temperature.
