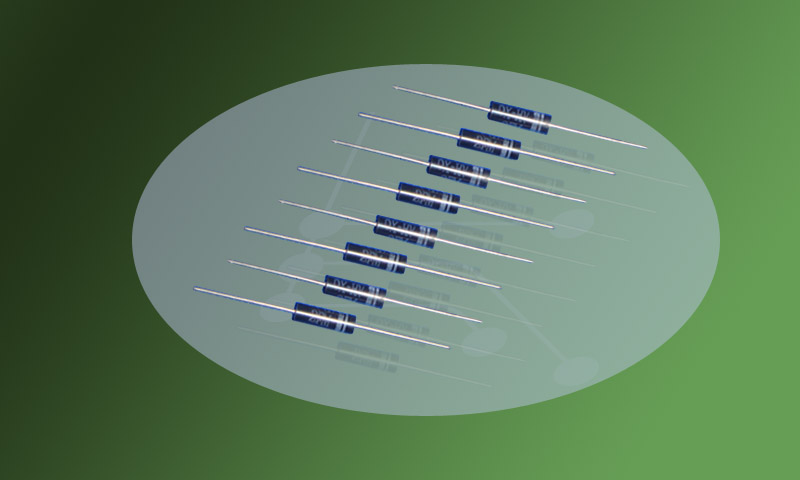

unitshine-hv-diode-medium Medium Current Series are well-tailored high voltage diodes with characteristics of forward current up to 100mA - 400mA, multi-choices of peak reverse voltage up to 8 - 20KV.

Medium Current Series are ideal for such purpose and applications as high frequency X-Ray power supply, laser power supplies, voltage multiplying circuits, rectification of power supplies for other electronic devices etc.

Features

This series of diodes possess the following features:

High junction temperature up to -40℃ ～175℃.
Low forward voltage drop, and small current leakage.
Avalanche breakdown protection.
Reverse recovery time up to 70 nS.
Excellent properties against HV surge impact.
Axial leading wires which are weldable.
Epoxy package with anti-corrosion properties on surface.

Application & Specification

Application

Our diodes are widely used in the following fields:

Rectification for high frequency high voltage power supplies.
High frequency X-Ray power supply.
Laser power supplies.
Voltage multiplying circuits.
Rectification of power supplies for other electronic devices.

Specification

Type		V_RRM (KV)	I_F(AV) (mA)	I_FSM (A)	V_FM(V) I_FM=10mA	I_R(μA)		Trr (nS)
Type		V_RRM (KV)	I_F(AV) (mA)	I_FSM (A)	V_FM(V) I_FM=10mA	Ta=25°C	Ta=100°C	Trr (nS)
DX-HV	2CL2FK	10	100	10	22.0	2.0	15	100
DX-HV	2CL2FL	15	100	10	26.0	2.0	15	100
DX-HV	2CL2FM	20	100	10	35.0	2.0	15	100
DX-HV	37-08	8	400	30	18.0	5.0	50	80
DX-HV	37-08F	8	400	30	18.0	5.0	50	70
DX-HV	37-10	10	350	20	20.0	5.0	50	80
DX-HV	37-20	20	200	35	35.0	5.0	50	100
DX-HV	37-20F	20	200	35	35.0	5.0	50	70

Type	A	B(Min)	Φ 1	Φ 2
2CL2FK, 2CL2FL,2CL2FM	15	24	4.3	1.0
37-08, 37-08F, 37-10	10	24	3	0.6
37-20, 37-20F	24	15	4.3	1.0

Installation Precautions

The diodes should be installed and commissioned by an operator with relevant electric, electronic and electrical qualification:

Precausions for Designing
1.The diodes must be used within the specified limits of work and environmental conditions (maximum absolute ratings), otherwise it will possibly cause damage to the devices. In review of reliability for design, it is necessary for the equipment manufacturer and the circuit designers to make appropriate derating designs for the devices.
2. As the pursuit of miniaturization is concern for the designers of high voltage diode, it is necessary in the application of epoxy resin and other materials for secondary packaging to ensure insulation.
2-1. It is recommended to use epoxy resin for secondary packaging, and the operator should pay attention to the expansion of packaging materials and shrinkage stress, the package should avoid air bubble to ensure that the insulator performance.
2-2. The surface of the high voltage diodes should be kept clean so that good interface for second packaging is well bonded.

Storage Note
1. High voltage diodes should be stored in the environment with temperature range of from 5 ℃ to 35 ℃ and relative humidity below 70%. To avoid the impact of the surrounding environment, immediate usage is recommended after open the package.
2. Such storage places with corrosive gases and dust should be avoided;
3. In case when high voltage diodes stores is more than 6 months, drying shall be applied in oven with temperature of 120 ℃ ± 5 ℃ for not less than 24 hours in order to avoid the impact of temperature.

Our team is in dedicate and professional position to provide above information for our customers and related operators to properly deal with what we supply to all over the world. You are welcome to contact us to get such information or data, and please address This email address is being protected from spambots. You need JavaScript enabled to view it.
